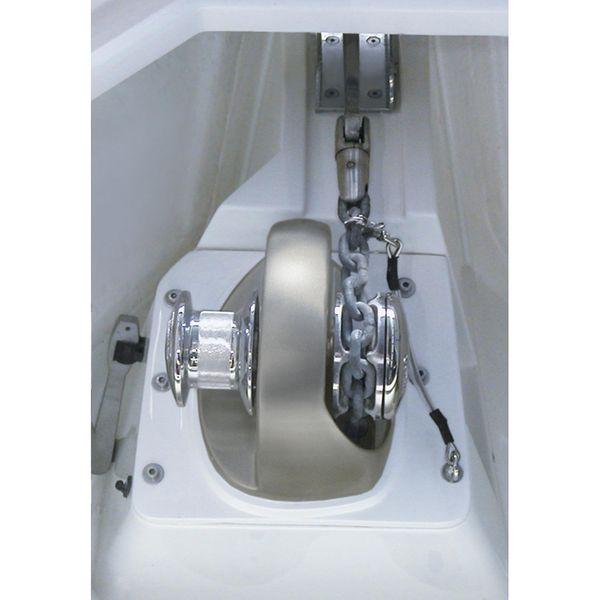

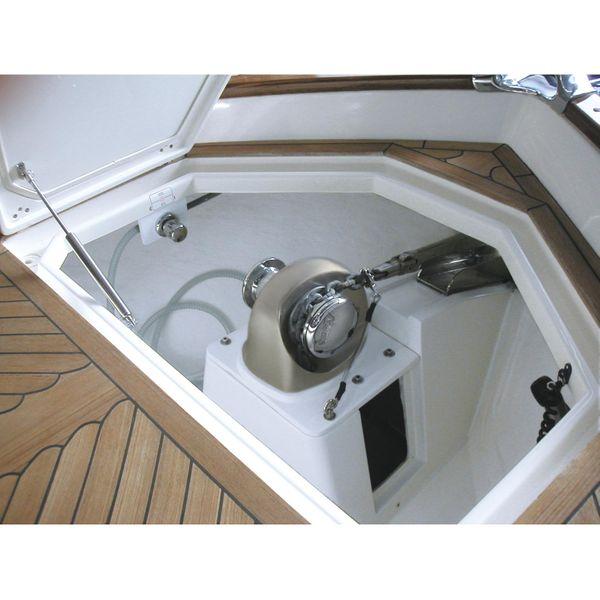

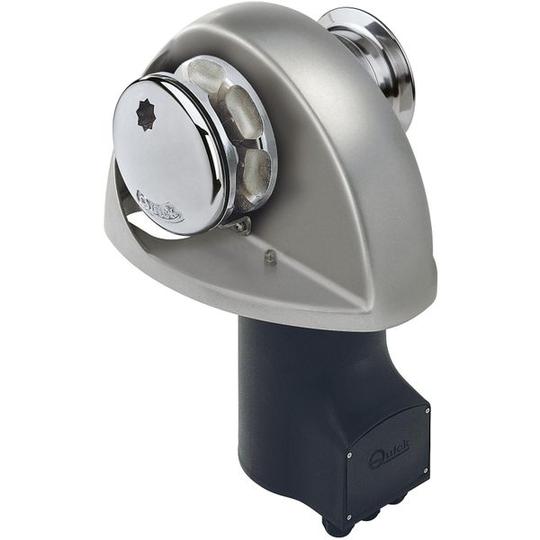

The Quick E3 Eagle 1024D windlass is suitable for boats from 10m to 13m (33 to 43ft). The horizontal axe windlass is quick and easy to install with a vertical motor and an Aluminium base, making it well protected and durable. Supplied with an Aluminium handle control and a built-in manual free-fall system, anchoring has never been easier. The Quick windlass features a 6mm gypsy on the right side, which is suitable for 6mm DIN766 and 6mm ISO chain. The Eagle 1024D also features a drum on the left side.
Key Features
- Horizontal windlass
- Base in anodized aluminium in hard oxide
- With drum
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- IP66 watertight motor
| Gypsy Size | 6mm |
| Primary Construction | Aluminium |
| Chain or Rope | Chain |
| Boat Size | 10 to 13 meters in length |
| Mounting [Filter] | Horizontal Mount |
| Brand | Quick |
| Series | Eagle E3 |
| Model | 1024D |
| Voltage | 24V DC |
| Wattage | 1000W |
| Working Load | 160kg (353 lb), Maximum: 490kg (1080 lb) |
| Max Pull Load | 1250kg (2756 lb) |
| Maximum Chain Speed | 47.8 m/min (156.8 ft/min), At Working Load: 20.9 m/min (68.6 ft/min) |
| Amps | 80A at 160kg |
| Fuse | 50A Protection Circuit Breaker |
| Contents | Windlass, Handle, Contactor Unit, Bolts and Screws, Drill Template, User Manual |
| Approvals | CE |
| Height | Overall: 415mm (16-11/32"), Above Deck: 205mm (8-3/32"), Below Deck: 210mm (8-1/4") |
| Width | 295mm (11-5/8") |
| Depth | 239.4mm (9-27/64") |
| Thickness | Deck: 25mm - 50mm (31/32" - 1-31/32") |
| Size | Motor Cable: 16mm2 (AWG5) |
Technical Manual
